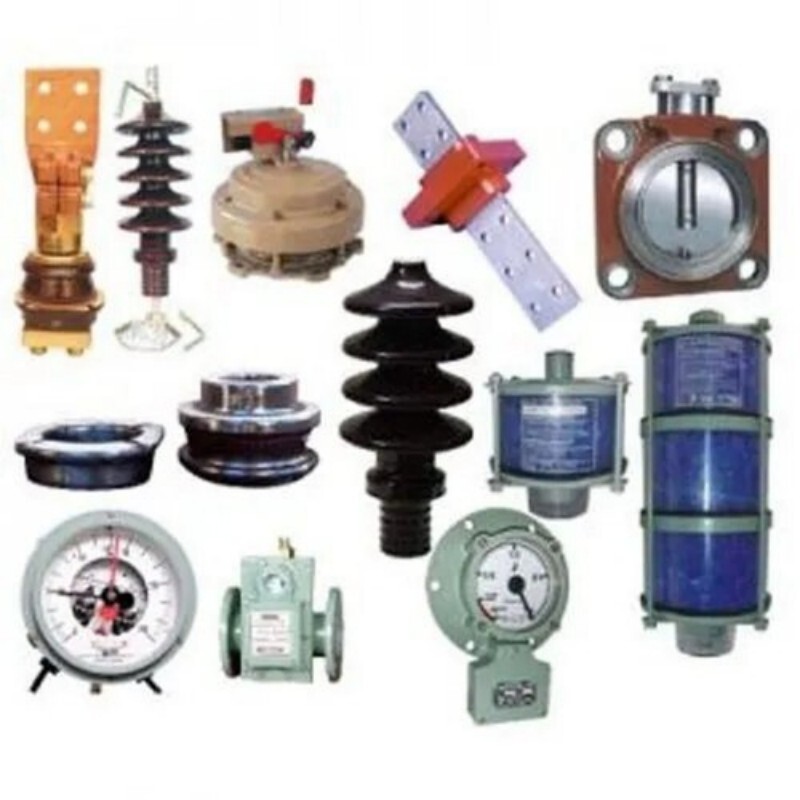

Transformers Components Parts

Name: Transformers Components Parts
Brand: Abhishek Industries
Price: 545 INR
Availability: InStock

Price 545 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Transformers Components Parts Specification

Operating Temperature
-20C to +85C

Dimension (L*W*H)
Customizable

High Voltage
Up to 33 kV

Coil Material
Copper / Aluminium

Rated Voltage
Up to 33 kV

Low Voltage
110V / 220V / Custom

Capacity
As Per Requirement

Cooling Type
AN / ONAN / ONAF

Standard
IS 2026 / IEC 60076

Voltage Booster Type
Step Up / Step Down

Load Loss
As Per IS Standard

Product Type
Transformer Components and Parts

Material
Copper, Silicon Steel, Insulation Material

Output
Custom As Per Design

Frequency (MHz)
50-60

Efficiency
98% Approx.

Phase
Single Phase / Three Phase

Usage
Electrical Transformers

Coil Structure
Toroidal / Laminated Core

Coil Number
Single / Multiple

Power Scope
5 kVA - 5000 kVA

Weight
Variable (As per part)

Core Type
CRGO / Amorphous

RoHS Compliance
Yes

Dielectric Strength
Up to 55 kV

Application
Distribution, Power, Isolation, Control Transformers

Testing Standard
Routine & Type Tested as per BIS/IEC

Mounting Type
Panel / Chassis / DIN Rail

Ambient Humidity
Up to 95% RH

Corrosion Resistance
Yes

Shock Resistance
IEC 60068-2-27 Compliant

Winding Technique
Layer / Disk / Helical

Surface Treatment
Epoxy / Varnish Coated

Insulation Grade
Class A/B/F as required

Terminal Type
Stud / Lug / Busbar

About Transformers Components Parts

Get It Now! Our transformers components parts are featured for their remarkable efficiency and scarce availability. Engineered with radiant precision, these laureate-grade elements cater to Class A/B/F insulation requirements, possess dielectric strength up to 55kV, and provide exceptional corrosion and shock resistance. Choose from core types such as CRGO or amorphous, terminals like stud, lug, or busbar, and mounting for panel, chassis, or DIN rail. Suitable for single or three-phase transformers, they deliver up to 33kV, with custom outputs. RoHS compliance and type-tested reliability ensure every part meets exacting standards. Ideal for manufacturers, suppliers, or traders across India.

Versatile Application and Usage

Transformers components parts are widely used in electrical transformers for distribution, power, isolation, and control applications. Suitable for installations in utilities, industries, and commercial sites, these parts withstand high ambient humidity and operational shocks. Designed for panel, chassis, or DIN rail mounting, and adaptable to single or three-phase systems, they are essential for step-up or step-down voltage operations. Their usage ensures reliable energy management across diverse settings, providing vital support in electrical infrastructure.

Prompt Delivery, Secure Transactions, and Certifications

Handover of your order is arranged through reliable goods transport networks, ensuring prompt and safe delivery across India. Payment terms are flexible and tailored to proposal amounts for each transaction, supporting seamless purchases for manufacturers and traders alike. Each part is delivered with relevant certifications, including BIS and IEC compliance, and comes with RoHS-certified assurance. Thorough routine and type tests confirm readiness for handover, reflecting commitment to quality and regulatory standards.

FAQ's of Transformers Components Parts:

Q: How do I select the appropriate transformer component part for my application?

A: Choose components based on your transformer's voltage class, phase type, mounting method, and required insulation grade. Consider your core, terminal, and cooling preferences as well as site-specific needs such as humidity resistance and dielectric strength.

Q: What certifications are available with these transformer components?

A: Components are supplied with BIS and IEC certifications, along with complete RoHS compliance. Routine and type testing assure quality and adherence to Indian and international standards.

Q: When can I expect the handover of goods after placing an order?

A: Delivery timelines depend on order volume and customization but are efficiently managed through trusted goods transport partners. Most standard parts can be handed over promptly upon confirmed payment of the proposal amount.

Q: Where can these transformer parts be applied?

A: These parts are apt for use in distribution, power, isolation, and control transformers, suitable for a range of environments including utility grids, industrial setups, and commercial installations.

Q: What are the benefits of using these featured transformer parts?

A: Clients benefit from high durability, excellent efficiency, and compliance with global standards. Customization options and robust resistance properties ensure reliability, safety, and long operational life.
